DT40

Specifications

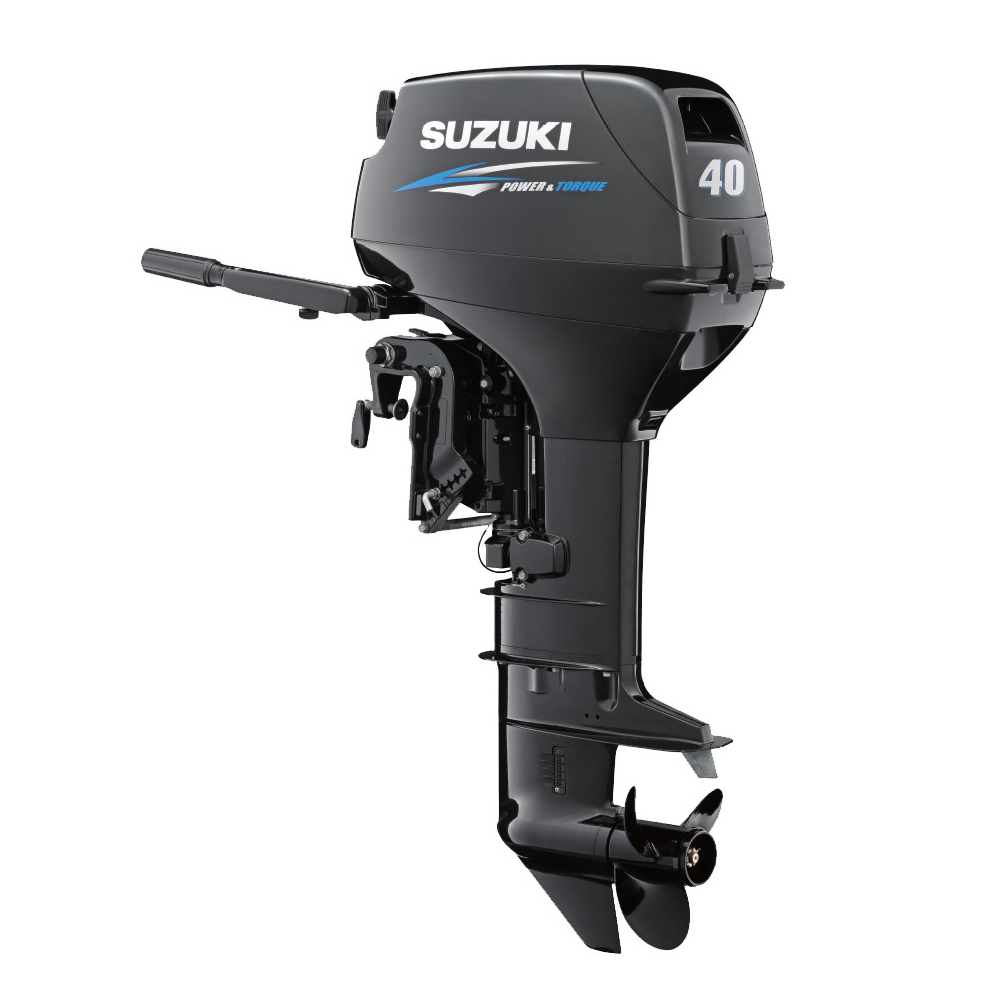

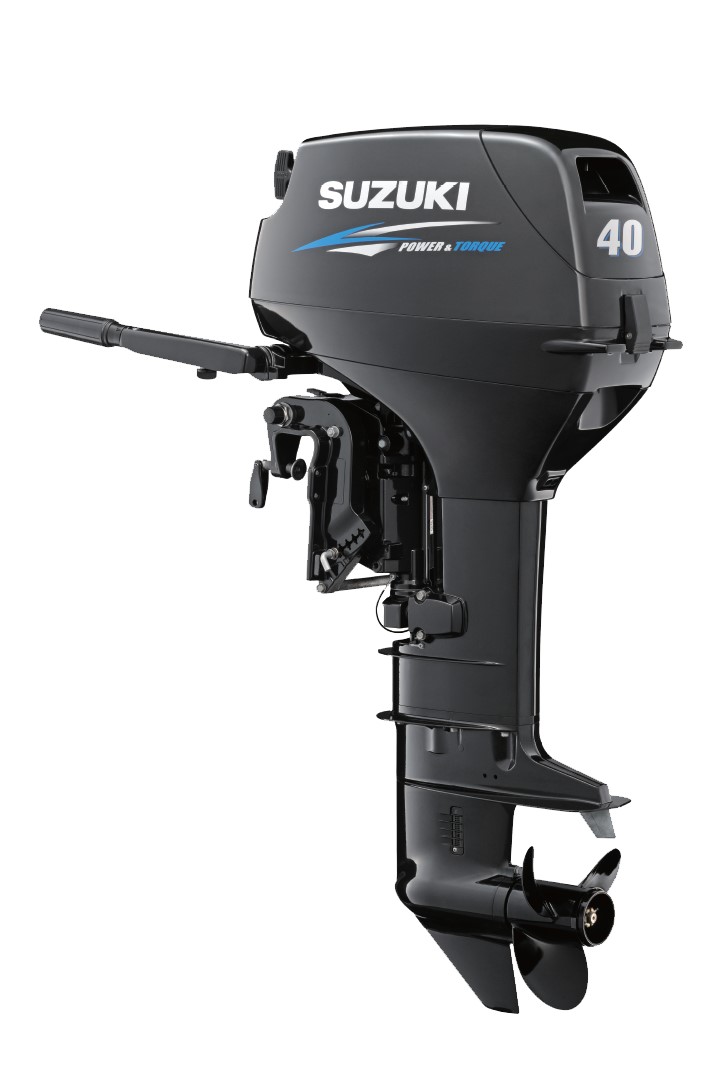

DT40 Suzuki 2-stroke Outboard
MODEL DT40
ENGINE TYPE 2-Stroke 2 Cylinders
FUEL DELIVERY SYSTEM Carburetor
TRANSOM HEIGHT mm (in.) S: 381 (15) | L: 508 (20)
STARTING SYSTEM Electric | Manual
WEIGHT kg (Ibs.) S: 75 (165) | L: 76 (168)
NO. OF CYLINDERS 2 (Inline)
PISTON DISPLACEMENT cm³ (cu. in.) 696 (42.5)
BORE × STROKE m/m (in.) 79 × 71 (3.11 × 2.80)
MAXIMUM OUTPUT 40 (29.4)/5500
PS (kW)/rpm
FULL THROTTLE 5000–5600
OPERATING RANGE rpm
STEERING Tiller (Remote Optional)
OIL PAN CAPACITY – (Premix fuel/oil)
IGNITION SYSTEM Suzuki P.E.I.
ALTERNATOR 12V 80W (Optional)
GEAR RATIO 2.09 : 1
GEAR SHIFT F-N-R
TRIM METHOD Manual Trim & Tilt
FUEL / OIL MIXING RATIO 50 : 1
