DT30

Specifications

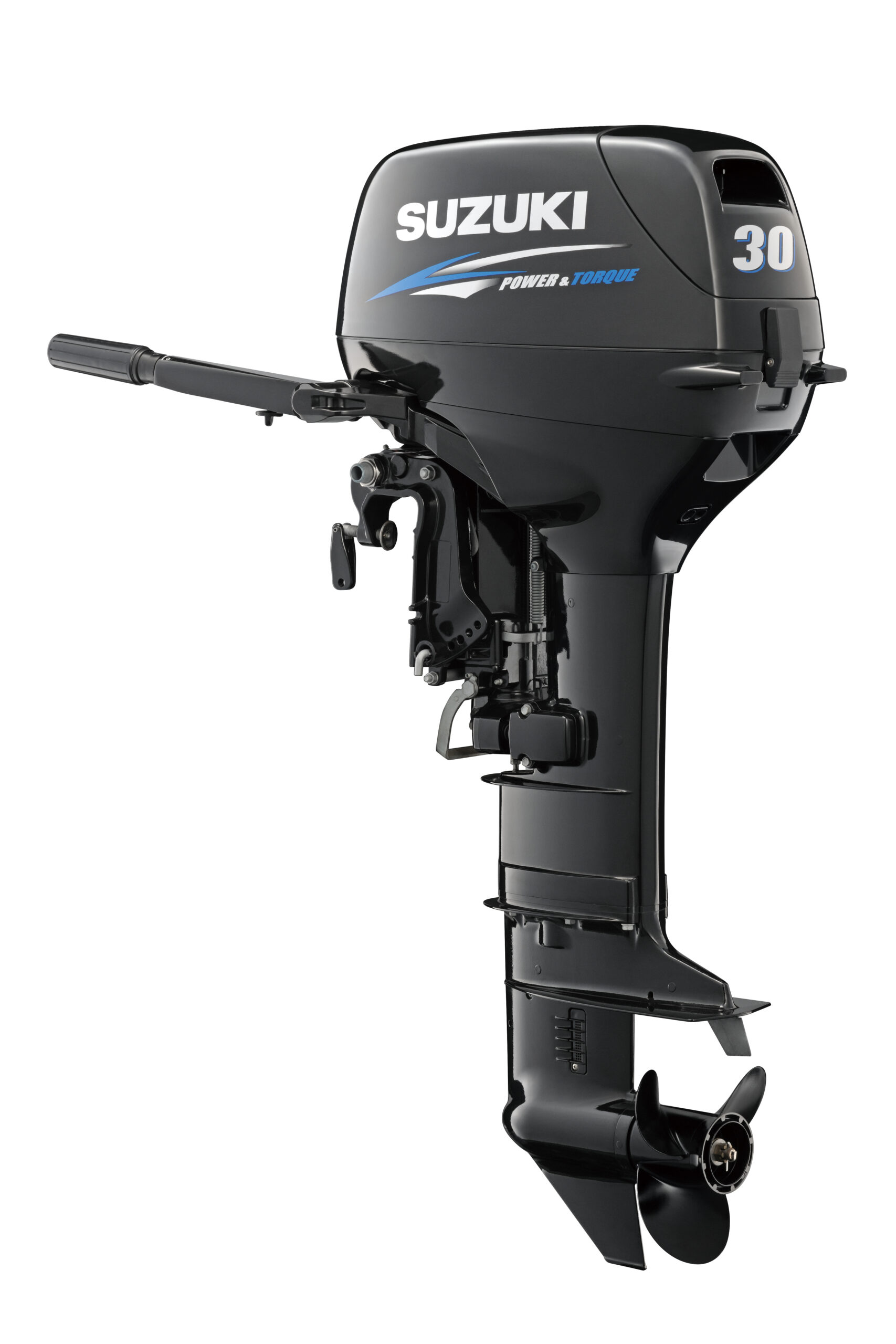

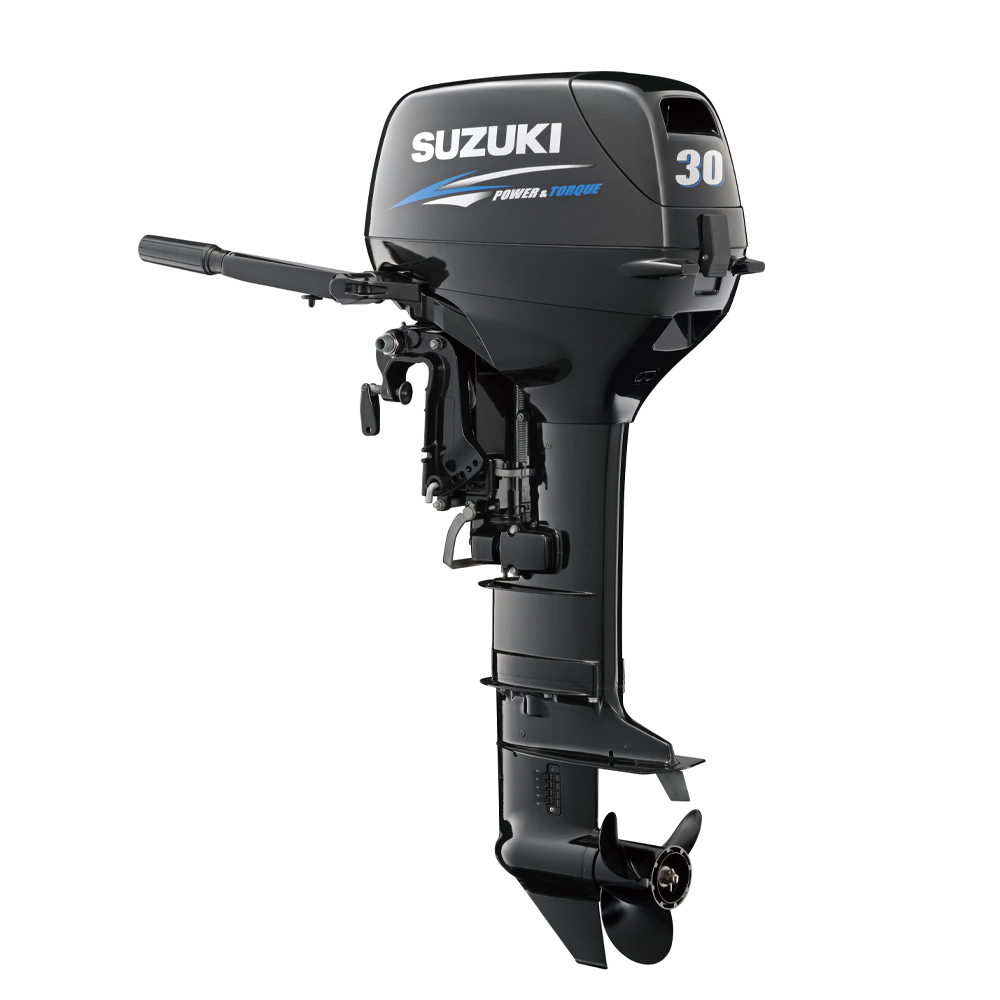

DT30 Suzuki 2-stroke Outboard
MODEL DT30
ENGINE TYPE 2-Stroke 2 Cylinders
FUEL DELIVERY SYSTEM Carburetor
TRANSOM HEIGHT mm (in.) S: 381 (15), L: 508 (20)
STARTING SYSTEM Electric / Manual
WEIGHT kg (Ibs.) S: 60 (132), L: 61 (134)
NO. OF CYLINDERS 2 (Inline)
PISTON DISPLACEMENT cm³ (cu. in.) 499 (30.4)
BORE × STROKE m/m (in.) 71 × 63 (2.80 × 2.48)
MAXIMUM OUTPUT 30 (22.1)/5500
PS (kW)/rpm
FULL THROTTLE 5000–5600
OPERATING RANGE rpm
STEERING Tiller (Optional Remote)
OIL PAN CAPACITY – (Premix fuel/oil)
IGNITION SYSTEM Suzuki P.E.I.
ALTERNATOR 12V 80W (Optional)
GEAR RATIO 2.09 : 1
GEAR SHIFT F-N-R
TRIM METHOD Manual Trim & Tilt
FUEL / OIL MIXING RATIO 50 : 1
